2.2 Nonlinear Solutions of f(x)=0

Bisection Method

- Similar to binary search

Starting with two numbers a and b such that
1. a<b
2. (  f(a)<0 and f(b)>0 ) or (  f(a)>0 and f(b)<0 ) ie f(a) and f(b) have different signs and neither are 0

This means that there is an x in [a,b] such that f(x)=0

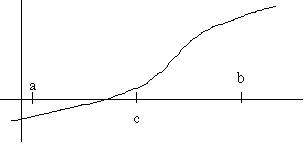

c is the average of a and b ( c = (a + b)/2 )

If f(a) and f(c) have opposite signs, then a zero lies in [a,c]
Otherwise a zero lies in [c,b] but if f(c)=0 then c is a zero so stop

Example:

sin(x)=1/2 (x in degrees)
f(x) = sin(x) - 1/2 = 0
start for example, with a=0 and b=50 f(0)= sin(0) - 0.5 = 0 - 0.5 = -0.5
f(50)=sin(50) - 0.5 = 0.266

f(a)<0 and f(b)>0  ==> OK

a b c f(c)
0 50 25 -0.077
25 50 37.5 0.1087
25 37.25 31.25 0.018
25 31.25 28.125 -0.02

c approaches 30

Error


At step n,

If we want to approximate with error < E how many steps do we need?

Example:

From previous example, if we need to approximate with E < 0.01:


which yields

So we pick n to be 13 (ie we will iterate 13 timesto be sure we have an error less than 0.01)

False Position (Regula Falsi)

bulletSimilar to bisection method
bulletRequires an interval [a,b] where a zero is found
bulletconverges faster than bisection

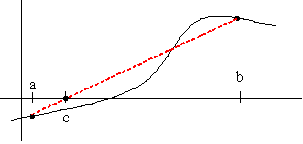

A line is subtended between (a,f(a)) and (b,f(b))
(c,0) is the intersection of the line and the x-axis
If f(a) and f(c) have opposite signs, then a zero lies in [a,c]
Otherwise a zero lies in [c,b] but if f(c)=0 then c is a zero so stop

How to compute c?

We know:

so combine those two:



Example:

sin(x) = 1/2        f(x) = sin(x) - 1/2 = 0
Start with a=0, b=50


Iteration a f(a) b f(b) c f(c)
0 0 sin(0) - 0.5= -0.5 50 1.266 32.637 sin(32.637) = 0.0393
1 0 -0.5 32.637 0.0393 30.259 0.0039
2 0 -0.5 30.259 0.0039 30.0248 0.000375

When to stop the iterations?

When the method converges to the desired percision

bulletHorizontal Convergence
Instead of expecting f(x)=0, expect f(x) to be within a small error E:
bulletExample: If E=0.001 in the previous example then we would stop at iteration 2

Geometrically, this means that the zero is in a horizontal band

bulletVertical Convergence
Stop when x is at a distance <delta> away from P (the solution)
bulletHowever, it is impossible to find <delta> since that implies we know P (the exact solution)
bulletSince we know the error gets smaller at every iteration we can determine that
bulletGeometrically this means:
bulletHorizontal & Vertical Convergence
Use both horizontal and vertical convergence
    AND

Troublesome finctions

bulletIf the graph y=f(x) is steep near the root (P, 0) then the root finding is well conditioned
bulletA solution with good precision is easy to obtain
bulletIf the graph y=f(x) is shallow near (P, 0) then the root finding may only have a few significant digits.
