CS314 - Week 1 - June 14 through June 18

by Jason Lewicki jlewicki@purdue.edu

Monday June 14, 2010

Book:

Numerical Methods - Using MATLAB 3rd/4th edition

Website:

www.cs.purdue.edu/homes/cs314

Goal:

-To learn the potential limitations of the computer in solving mathematical problems.
-To learn how to use the computer to solve/approximate non-linear and linear equations, integrations, differentiations, interpolations, and differential equations

Mailing List:

Add yourself to the mailing list. Log into a cs machine(lore), type "mailer add me to cs314-students"

Grade Distribution:

25% midterm
25% final
50% projects and homework

Syllabus:

-floating point/fixed point representation of numbers
-Solutions of non-linear equations of the form f(x)=0
-How to solve linear equations Ax=B
-Interpolation
-Curve fitting
-Numerical differentiation
-Numerical integration
-Numerical Optimization
-Solutions of differential equations

Binary:

Computers use binary numbers.
1011 = 1x2³ + 0x2² + 1x2¹ + 1x2⁰ = 8 + 0 + 2 + 1 = 11

Decimal:

537.5 = 5x10² + 3x10¹ + 7x10⁰ + 5x10^-1 = 537.5

Binary->Decimal

110.11 = 1x2² + 1x2¹ + 0x2⁰ + 1x2^-1 + 1x2^-2 = 4 + 2 + 1/2 + 1/4 = 6.75

---------------------------------

Tuesday June 15, 2010

How to go from base₁₀ to base₂?

-Separate the integer part>=1 from the fraction
-The integer part had the form n = b₀ + (b₁x2¹) + (b₂x2²) + ... + (b_kx2^k)
-We wish to find the digit b_i : n/2 = b₀/2 + (b₁x2⁰) + ... + (b_kx2^k-1)
-The remainder determines if b_i is a 0 or a 1

Example:

23₁₀ -> base₂ 2/23 = 11 r=1
2/11 = 5 r=1
2/5 = 2 r=1
2/2 = 1 r=0
2/1 = 0 r=1
Therefore 23 = 10111

Example:

F = b_-1x2^-1 + b_-2x2^-2 + b_-3x2^-3 + ... + b_-nx2^-n
2xF = b_-1 + b_-2x2^-1 + b_-3x2^-2 + ... + b_-nx2^-n+1
if 2xF >= 1 then b_-1 = 1
else b_-1 = 0

Example:

.23 -> binary
.23x2 = .46 <=1 so .0
.46x2 = .92 <=1 so .00
.92x2 = 1.84 >1 so .001
.84x2 = 1.68 >1 so .0011
.68x2 = 1.36 >1 so .00111
.36x2 = .72 <=1 so .001110
This is an odd fraction in binary, sort of like 1/3 in base₁₀

Example:

5.33 -> binary

part1:

2/5 = 2 r=1
2/2 = 1 r=0
2/1 = 0 r=1

part2:

.33x2 = .66<=1 so .0
.66x2 = 1.32>1 so .01
.32x2 = .64<=1 so .010
.64x2 = 1.28>1 so .0101
.28x2 = .56<=1 so .01010
So,
101.01010

Floating Point Number Representation:

How to represent numbers with integer and fraction part in memory NNNN.FF

Two ways:

1) Fixed Point
2) Floating Point

Fixed Point:

The number of bits for the integer and fraction parts are fixed.
NNN.FF, 4 bits for integer, 2 bits for fraction, 1 bit for sign(0 positive, 1 negative)

Largest Number:

0111.11 = 2³ + 2² + 2¹ + 2⁰ + 2^-1 + 2^-2 = 15.75

Smallest Number:

11111.11 = -15.75

Smallest difference between 2 consecutive numbers:

0000.01
-.0000.00
---------
=0000.01

2^-2 = 1/2² = 1/4 = .25

Problem:

Little range and bad precision
Advantage:
Fast arithmetic operations

Floating Point:

The decimal point moves around to keep the desired precision
-use scientific notation in binary
-numbers are represented as: x = +/- 1.q x 2^+/-e , 0 cannot be represented
-q stands for the mantissa, 0.5 <= q < 1
-in floating point we allocate a # of bits for the mantissa and a # of bits for the exponent

Addition:

1.01x2³ -> .0101x2⁵
1.10x2⁵ -> +1.10x2⁵ = 1.1101x2⁵

---------------------------------

Wednesday June 16, 2010

Homework:

On website, due Wednesday June 23, 2010

Errors in computation of numbers:

Absolute Error = | p – p* | p* is the approximation of p, p is a number
Relative Error = | p – p* | / | p | p!=0
The number of bits used to represent a number are limited. So we need to "chop off" or "round" a number.
pi=3.145926
Chop off = 3.141
Round = 3.142

Absolute Error:

Chop-off = ~0.59x10^-3
Round-off = ~0.41x10^-3

Relative Error:

Chop-off = 1.9x10^-4
Round-off = 1.3x10^-4
Rounding is better.

Propagation of Errors:

Sum:

Assume p and q are approximated by p* and q*
p* = p + e_p
q* = q + e_q
p* + q* = p + q + (e_p + e_q)
The new error is the sum of the initial errors

Product:

p*q* = p_q + p(e_q) + q(e_p) + (e_p)(e_q)
The new errors are a result of the amplification of the initial errors

Solution of non-linear equations:

f(x)=0 we will use iteration to solve the equation, starting with a value P₀ and a function P_k=g(P_k-1)
P₀
P₁ = g(P₀)
P₂ = g(P₁)
...
P_k = g(P_k-1)
We stop when |P_k - P_k-1| < ep, for some epsilon

Fixed Point:

-A fixed point of g(x) is a real number P, such that p=g(p)
-Geometrically - the fixed point of a function y=g(x) are the points of intersection between the line y=g(x) and y=x

Example:

2 ways to solve:

1st way:

x² - 2x + 1 = 0
x² + 1 = 2x
(x² + 1)/2 = x
x_k = (x²_k-1 + 1)/2

x₀ = 0
x₁ = (0² + 1)/2 = 1/2 = .5
x₂ = (.5² + 1)/2 = .625
x₃ = (.625² + 1)/2 = .695
x₄ = (.695² + 1)/2 = .74
x₅ = .77
x₆ = .79
x₇ = .82
x₈ = .83
x_n = 1

2nd way:

x² - 2x + 1 = 0
x = (-b +/- sqrt(b²-4AC))/2
x = (-(-2) +/- sqrt(4-4))/2
x = 2/2 = 1

---------------------------------

Thursday June 17, 2010

Fixed Point Theorem:

If | g’(x) | <= k < 1 for all x in [a,b] and g(x) in [a,b]
Then the iteration P_n = g(P_n-1) will converge to a unique fixed point Pis an element of [a,b]. In this case, P is said to be an attractive fixed point.

However, if | g’(x) | > 1, then the iteration will not converge.

Different types of convergence/divergence:

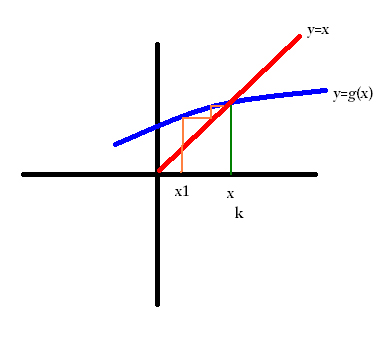

Monotone convergence:

0 < g'(P) < 1

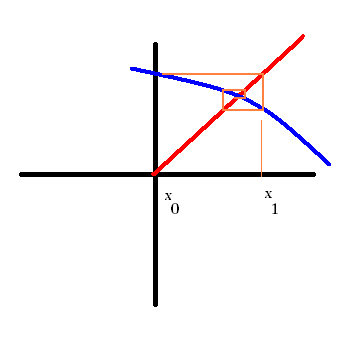

Oscillating Convergence:

-1 < g'(P) < 0

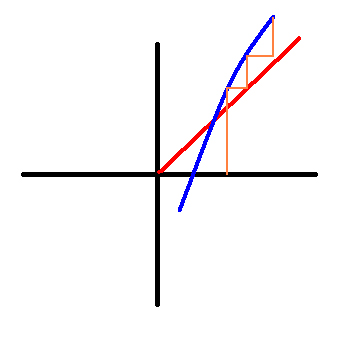

Monotone Divergence:

1 < g'(P)

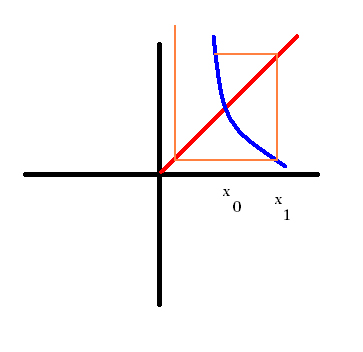

Oscillating Divergence:

g'(P) < -1

Bisection Method:

-Used to find a solution for f(x)=0, this is similar to binary search
-# of guesses = log₂(c), where n is [a,b] n=b-a
-In the bisection method you have to start with a sub-range [a,b] such that f(a) < 0 and f(b) > 0, or the opposite.
-Since f(x) is contiguous, there is an x between [a,b] such that f(x)=0

Step 1:

-get the middle point(c). c=(a+b)/2
if f(a) and f(c) have opposite signs, a 0 lies between [a,c], b=c
if f(b) anf f(c) have opposite signs, a 0 lies between [c,b], a=c
if f(c) = 0, then stop. Also stop when |f(c)| < E, where E is some small value

Go back to Step 1:

Example:

sin(x) = 1/2 , x is in degrees
sin(x)-1/2 = 0 = f(x)
a=0, b=50

a	b	c	f(c)
0	50	25	-0.077
25	50	37.5	...

...
c -> 30

---------------------------------

Friday June 18, 2010

How many iterations used?
at each step the range |a-b| is reduced by half.
Therefore at step n |a_n - b_n| = |a-b|/2ⁿ

If we want an approximation of error < E:
|a_n - b_n| = |a-b|/2ⁿ < E
|a-b|/2ⁿ < E
|a-b|/E < 2ⁿ
log₂ |a-b|/E < log₂*2ⁿ
log₂ |a-b|/E < n*log₂*2
1/(log₂*2)*log|a-b|/E < n
N > 1/(log₂*2) * log |a-b|/E
Given some E, you will need this many operations

Example:

If we need an approximation E=0.01:
(log((0-50)/0.01))/log(2) < n
12 < n
Therefore: at least 12 iterations.

False Position Method:

-created because bisection method was too slow
-It also needs [a,b] where there is a 0 between [a,b]
-A line is subtended between (a,f(a)) and (b, f(b)
-A c is chosen to be the intersection of the line with the x axis
-As in bisection:

Step 1:

if f(a) and f(c) have opposite signs, a 0 lies between [a,c], b=c
if f(b) anf f(c) have opposite signs, a 0 lies between [c,b], a=c
if f(c) = 0, then stop. Also stop when |f(c)| < E, where E is some small value

Go back to Step 1:

slope(m)=(f(a)-f(b))/(a-b)
slope(m)=(f(b)-0)/(b-c)
slope(m)=(f(a)-f(b))/(a-b) = f(b)/(b-c)
c=b-f(b)*[(a-b)/(f(a)-f(b))]

Example:

sin(x) = 1/2
sin(x) - 1/2 = 0 = f(x)

i	a	b	f(a)	f(b)	c	f(c)
0	0	50	sin(0)-.5=-.5	sin(50)-.5=.266	50-.266[(0-50)/-.5-.266)]=32.546	sin(32.546)-.5=.03
1	0	32.546	sin(0)-.5=-.5	sin(32.546)-.5=.03	32.546-.03[(0-32.546)/-.5-03)]=30.70	sin(30.70)-.5=.01
2	0	30.70	...	...	...	...

Stop when f(c) < E

Check for Convergence:

Troublesome Functions:

-If graph y=f(x) is steep near root(P,0) then root finding is called well conditioned.
-Solution is easy to obtain with good precision
-If graph y=f(x) is shallow near P(0), then the root finding is ill conditioned, i.e. to the root finding may only have few significant digits.

Newton Rapson Method:

If f(x), f'(x), and f''(x) and continuous, then we can use this information to find the solution of f(x)
...
Next Week's notes should have the rest of the Newton Rapson Method.
