June 21, 2004

Newton Raphson

• It is used to find the solution for f(x) = 0
• It uses also the derivative f '(x)

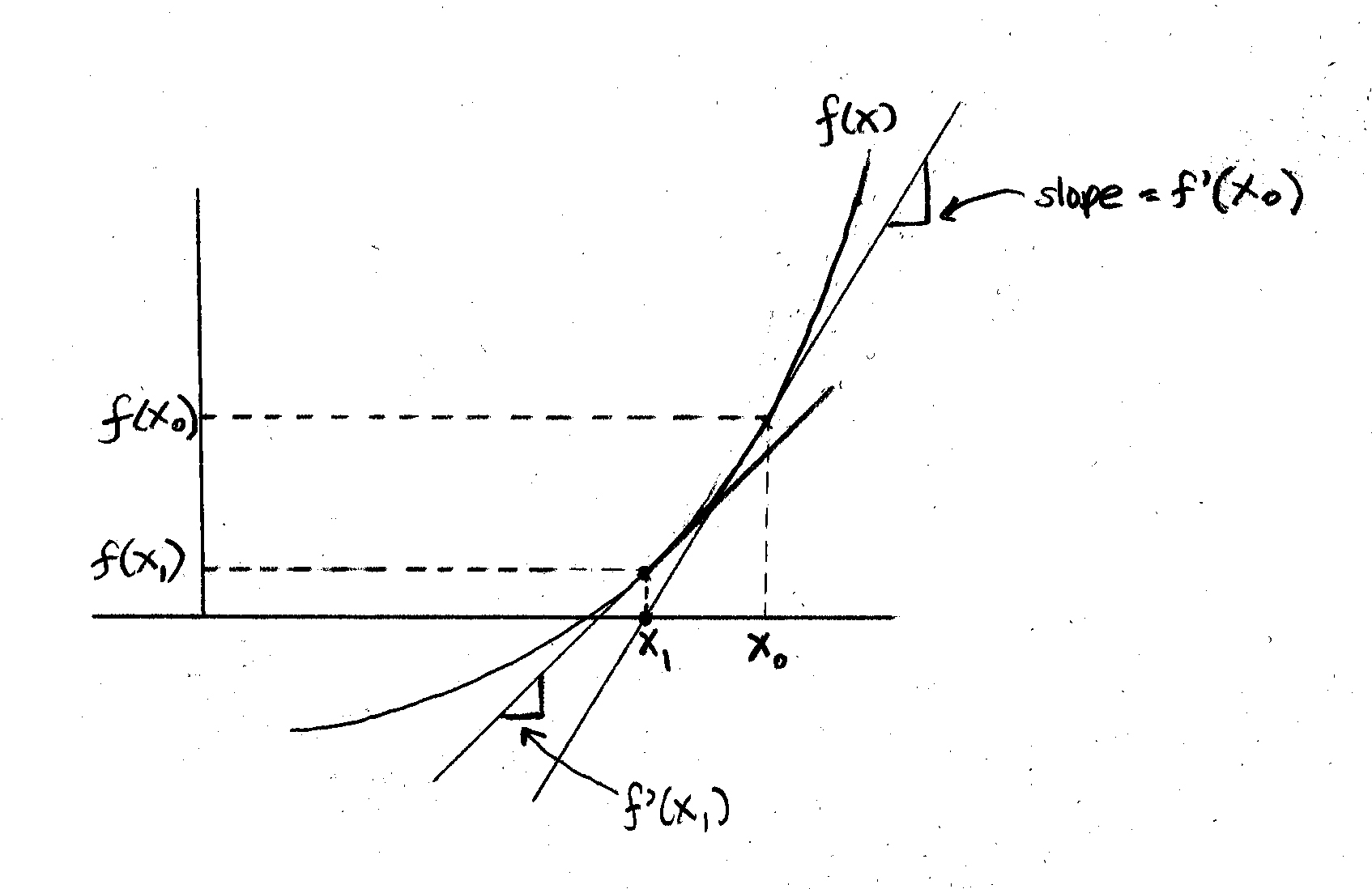

• It uses f(x₀), f '(x₀) and a point x₀ to find an approximation to a line of the function f(x).

Using the points (x₀, f(x₀)) and (x₁, 0).
1) m = (f(x₀) - 0)/(x₀ - x₁)
2) m = f '(x₀)
putting 1) and 2) together:
f '(x₀) = (f(x₀) - 0)/(x₀ - x₁)
f '(x₀)(x₀-x₁) = f(x₀)
(x₀-x₁) = f(x₀)/f '(x₀)
x₁ = x₀ - f(x₀)/f '(x₀)

• We can arrive to the same iteration equation of Newton Raphson using Taylor Expansion
• We can approximate a continuous function using a Taylor polynomial expansion around x₀.
  f(x) = f(x₀) + f '(x₀)(x-x₀) + f "(x₀)(x-x₀)²/2 + f '"(x₀)(x-x₀)³/6 + .... + fⁿ(x-x₀)ⁿ/n! ....
• To approximate Newton Raphson, we are going to use only two terms in the expansion
• Newton Rapson approximate f(x) using a line. The quadratic, cubic, etc terms are eliminated from the Taylor Expansion.
  f(x) ≈ f(x₀) + f '(x₀)(x-x₀) + e; e is the error of using a line instead of the complete polynomial
  We want to obtain x, using the approximation below where f(x₁) = 0....

•  In the same way, you could create a new numerical method faster than Newton Raphson that uses 3 terms in the approximation instead of 2

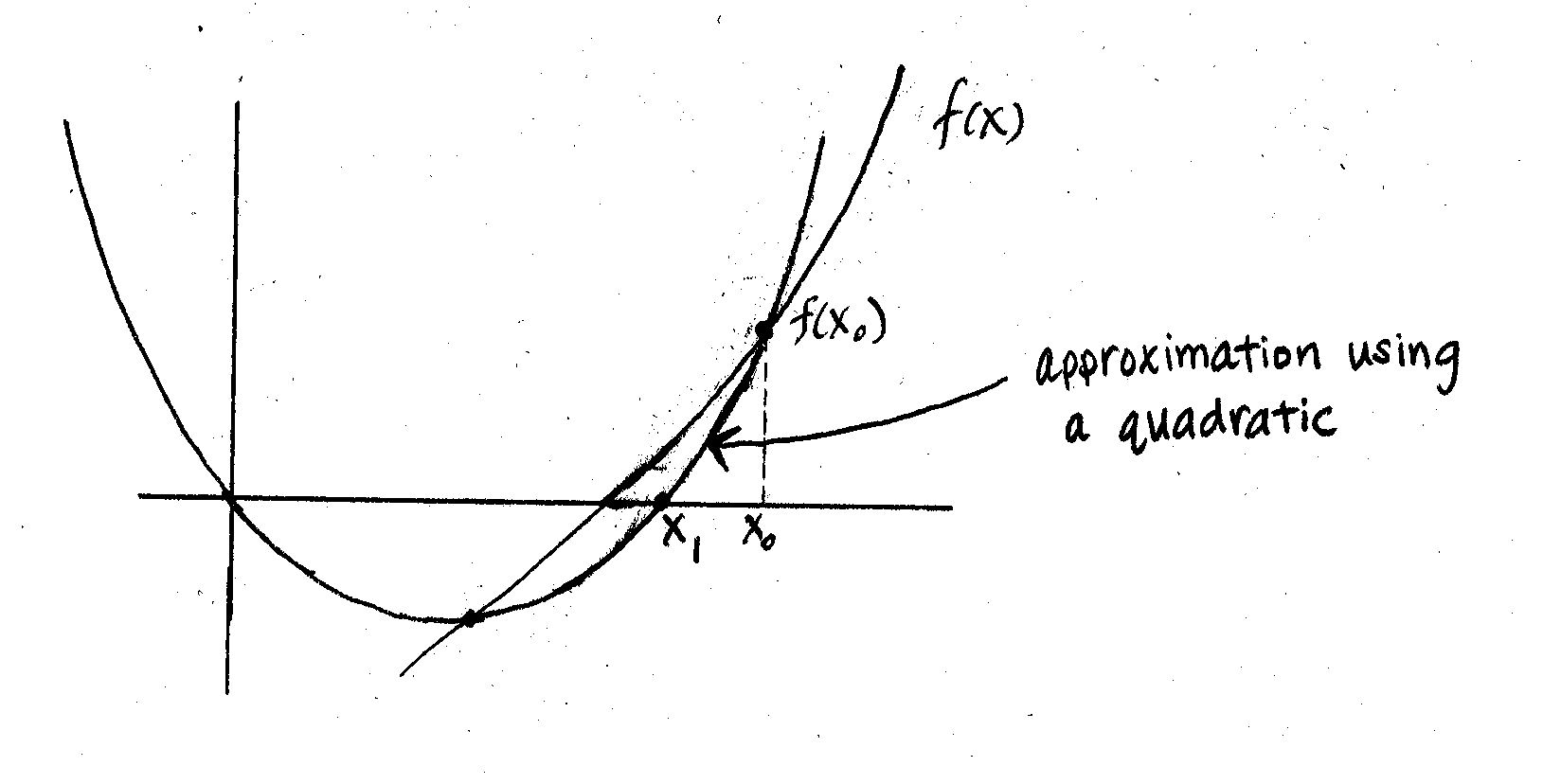

• The approximation will be a quadratic instead of a line
• The approximation will require a second derivative

f(x)=f(x₀) + f '(x₀)(x-x₀) + f ''(x₀)(x-x₀)² / 2
0 = f(x₀) + f '(x₀)(x₁-x₀) + f ''(x₀)(x₁-x₀)² / 2
Solve for (x₁-x₀) using  -b ± √(b²-4ac) / 2a

Use the term of x₁ closer to x₀.

Example of Newton Raphson

Exact solution for sin(x) -.5 = 0 in radians is 30° that is 30π/180 rad = .5235 rad.

• One of the disadvantages of Newton Raphson is that you need teh derivative f '(x)
• It is possible to obtain the derivative f '(x) of f(x) numerically.

        f '(x) = f(x+ε) - f(x) / ε

        The exact solutions requires that ε → 0.  We can do an approximation by using a small ε (like 1x10)^-5.

        Example:

• When Newton Raphson may not give a good approximation or it may not converge....

June 22, 2004

Order of Convergence

• Some methods are faster than others finding the solution of f(x) = 0.
• Assume p is a zero (solution)

            E_n = P - P_n  is the error in the iteration "n"

            If there are two positive constants that exist such that n ≠ 0 and R > 0 and

            lim _n→∞ |P-P_n+1| / |P-P_n|^R  =  lim_n→∞ |E_n+1| / |E_n|^R   = A

            Then the sequence is said to converge to P with an order of convergence R.

            This means  E_n+1 = A|E_n|^R

             Example    let  E_n  = .001 and A = 1 and R = 2

                            E_n+1 = 1 |.001|²

                                    = 1(1x10^-3)²

                                                =  1x10^-6  =  .000001

        If R = 1, the convergence is called "linear".

        If R = 2, the convergence is called "quadratic"

        If f(x) has a simple root and we use Newton Raphson the R = 2 (quadratic convergence)

        Usually, the more roots an equation has, the slower the convergence will be.

Secant Method

•  The Newton Raphson method requires the evaluation of two functions at each iteration:  f(x_n) and f '(x_n)
• The secant method will require only one evaluation of f(x).
• The secant method's order of convergence with a single root is R ≈ 1.618

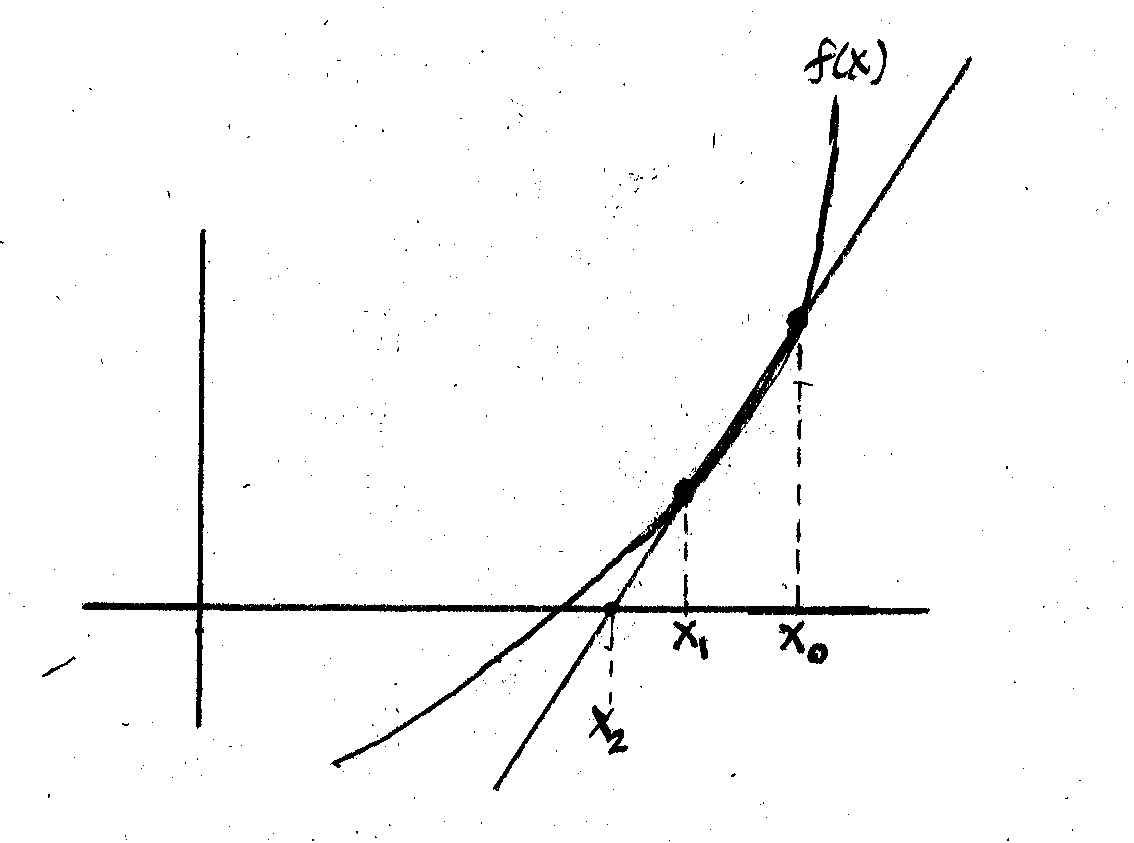

• The secant method uses two initial points, P₀, P₁ close to the root.

(1)    m = [f(x₁) - f(x₀)] / (x₁ - x₀)        using (x₀, f(x₀)) and (x₁, f(x₁))

(2)    m = [f(x₂) - f(x₁)] / (x₂ - x₁)        using (x₁, f(x₁)) and (x₂, 0)

Putting (1) and (2) together....

        [f(x₁) - f(x₀)] / (x₁ - x₀) = [0 - f(x₁)] / (x₂ - x₁)

        x₂ - x₁ = - f(x₁)_*(x₁ - x₀)  / [f(x₁) - f(x₀)]

        x₂ = x₁ - f(x₁)_*(x₁ - x₀)  / [f(x₁) - f(x₀)]

June 23, 2004

The secant method approximates Newton Raphson if x_1→x₀

          x₂   =  x₀  -  f(x₀) / f '(x₀)        equation for Newton Raphson

Example

        Secant Method

        f(x) = sin(x) - .5 = 0        x in rad.

        x₀ = 0   x₁ = 1

        x_n+1 = x_n - f(x_n)(x_n - x_n-1)  /  f(x_n) - f( x_n-1)

Exact solution:    x = 30°_*π/180 = .5235

In summary:  to solve f(x) = 0 you may use....

1. Bisection
2. False Position  (Regula Falsi)
3. Newton Raphson
4. Secant Method

The Solution of Linear Systems

Example:

            6x + 3y + 2z = 29

            3x + y + 2z = 17

            2x + 3y + 2z = 21

This can be expressed as:    Ax = B where A is a matrix and B is a vector.

        A                X                  B

• Each linear equation represents a plane in the n^th dimension
• The solution x,y,z represents the intersection of the planes
• Not all the systems of linear equations have solutions

        (1)  2x + 3y = 6          (3)  x = (6 - 3y)/2   from (1)

        (2)  4x + 6y = 10

        substitute (3) in (2)

        4_*(6-3y)/2  + 6y = 10

        12 - 6y + 6y = 10

        12 = 10

Geometrically, these equations represent 2 planes that never intersect.

You also can have a system of equations with an infinite number of solutions....

        (1)  2x + 3y = 6

        (2)  4x + 6y = 12

(1) and (2) are the same equation so both are the same plane. Therefore, the number of solutions is infinite.

Upper Triangular Systems of Linear Equations

is called upper triangular if a_ij = Ø when  i > j.

Example

Lower Triangular Systems of Linear Equations

a matrix A is called lower triangular if a_ij = Ø when i < j

Example

Advantage

An upper triangular system of linear equations is easy to solve by obtaining the value of x_n from the last equation and substituting the x_n into the (n-1)^th equation to obtain x_n-1 and so on.  This is called back substitution.

Back Substitution

3x + 4y + z = 2

       3y + 2z = 1

               5z = 10

z = 10/5 = 2

y = 1-2(2) / 3 = -1

x = 2-2-4(-1) / 3 = 4/3

Gaussian Elimination

• It is a method to solve equations of linear equations
• It transforms an arbitrary system of linear equations into upper triangular
• It solves the upper triangular system of equations using back substitution
• The transformation to upper triangular uses the following properties that do not affect the solution.

1. Interchange equations:  the order of the two equations do not affect the solution
2. Multiplying an equation by a constant will not affect the solution. (scaling)
3. Replacement:  an equation can be replaced by the sum of itself and a non-zero multiple of another equation.

June 24, 2004

We will use these three properties to transform an arbitrary system of linear equations into an upper triangular system and then solve it with back-substitution.

Example

    1x + 3y + 4z = 19

    8x + 9y + 3z = 35

            x + y + z = 6    Solve system using gaussian elimination.

    Augmented matrix.

    Choose a pivot row and pivot element. In this case, 1 is the pivot element.

    We need to make element a₂₁ = 8 to be Ø so we multiply the first equation by 8 and subtract the result from second equation.  We also multiply the first equation by -1 and add it to the third equation.

                ↓

        Multiply second row by -1/15

                ↓

        We need to make element a₃₂ = 0 so we multiply second equation by 2 and add it to third equation.

                ↓

Back substitution (-3+2*29/15)z = -13 + 2*117/15 .

    z = 3

    1y + (29/15)(3) = 117/15,    y = 117/15 - (29/15)(3) = 2,    y = 2

    x + 3(2) + 4(3) = 19,    x + 6 + 12 = 19,    x = 19 - 18 = 1,    x = 1

Implementing Gauss Elimination Using Matlab

function x = gauss(A,B)

% Input - A is a NxN nonsingular matrix
%          - B is a Nx1 matrix
% Output - X is a Nx1 matrix that is the solution of Ax =B
% Get dimensions of A

[N N] = size(A);

% Initialize X with zeroes

x = zeroes (N,1);

% Obtain augmented matrix

Aug = [A,B];

% Gaussian Elimination
%For all rows Pivot 1 to N

for P=1:N

    %Choose a pivot. We will ignore the case when pivot is 0 for now.

    Piv = Aug (P,P);

%Divide pivotal row by pivot

    for K=P:N+1                                        short notation: Aug(P,P:N+1) = Aug(P,P:N+1)/Piv
    Aug (P,K) = Aug(P,K)/Piv;
    end

% Make 0's in the other elements in pivotal column for all remaining rows

    for K=P+1:N

        %for all remaining columns

        m = Aug(K,P);    % element that we want to be 0
        for i=P:N+1
            Aug(K,i) = Aug(K,i)                    short notation: Aug(K, P:N+1) = Aug(K, P:N+1)

                - m*Aug(P,i);                                                    -m*Aug(P, P:N+1);
        end
    end

% Back substitution

    for K=N:1
        sum = 0
        for i=K+1:N
            sum=sum+Aug(K,i)*X(i,1)
        end
        X(K,1)=Aug(K,N+1) - sum
    end

% Result is in X.

June 25, 2004

(1)  Prevent pivot = 0

        If pivot = 0, switch rows to prevent division by zero

(2)  To reduce computing error, you may choose as the next pivot the largest number in the rows (or columns) that are still left to transform.

                ↓

        use the largest number as pivot; switch rows if necessary

        Triangular Factorization

•    A matrix A has a triangular factorization if it can be expressed as the product of a lower triangular matrix and an upper triangular matrix.
•    Triangular factorization is useful when you want to solve multiple systems of linear equations that have the same A.

•     Triangular factorization will save time instead of using Gauss Elimination n times.

            A = LU        Lower Tri Matrix, Upper Tri Matrix

        | a₁₁    a₁₂     ....... a_1n   |                | L₁₁     0       ....... 0     |   | U₁₁    U₁₂     ....... U_1n   |
           |  a₂₁    a₂₂    ....... a_2n   |       =       |  L₂₁    L₂₂    ......  0    |   |  0       U₂₂     ....... U_2n   |
           |    _:                                      |                |    _:                              0     |   |  0                                   _:       |
           |  a_n1    a_n2   ....... a_nn  |                 |  L_n1    L_n2   ...... L_nn  |   |  0        0         ....... U_nn  |

                    A                          =                    L                                    U

        Assume the linear system Ax=B where A has a triangular factorization A=LU then....

                    AX = B

                        ↓

                  (LU)X =B

        Then if we define  UX = Y  (1)

                    L(UX) = B

                    LY = B   (2)

        Then we can solve X by first solving Y in (2) that is a lower triangular system of linear equations using "forward substitution".

        Once Y is found, we can solve (1) using back substitution.

• We solve (2) using forward substitution
• We solve (1) using back substitution

  LU Factorization Example

       6x₁ + 1x₂ + 4x₃ = -3

       5x₁ + 3x₂ + 2x₃ = 21

       1x₁ - 4x₂ + 3x₃ = 10

    Add identity matrix to the left

           will become L      will become U

    Apply Gaussian Elimination to the matrix in the right hand side and also do the same steps in the matrix in the left.

              multiply first row by 1/6

              multiply first row by -5 and add to second row
              multiply first row by -1 and add to third row

                    | 1/6       0    0  |    | 1        1/6            4/6       |
         =         |  -5/6     1    0  |    | 5       -5/6 +3    -20/6 +2  |
                    |  -1/6     0    1  |    | 0       -1/6-4       -4/6+3     |

               multiply second row by 6/13

                multiple second row by 25/6 and add to third row

                  | 1/6                         0           0  |    | 1            1/6                    4/6           |
       =         |  -5/13                         6/13         0  |    | 0             1                   -8/13          |
                  |  -138/78                      25/13       1  |    | 0             0                    -18/78           |

                multiply third row by -78/18

                                    L                                                            U

            AX = B    LUX = B    UX = Y (1)     LY = B  (2)

            Solve (2) and then solve (1) from (2)

            LY = B

            1/6Y₁ + 0Y₂ + 0Y₃ = -3

            -5/13Y₁ + 6/13Y₂ + 0Y₃ = 21

            -138/18Y₁ - 150/18Y₂ - 78/18Y₃ = 10

            Solve Y₁.  Y₁  = (-3)6 = -18

                             Y₂  = (21 + 5/13(-18))13/6 = 21*13/6 + 5(-18)/6 = 61/2

                             Y₃  = ((10+138/18(-18) + 150/18(61/2))(-18/78)

            Solve (1)    UX = Y

            1X₁ + 1/6X₂ + 4/6X₃ = -18

            0X₁ + 1X₂ - 8/13X₃ = 61/2

            0X₁ + 0X₂ + 1X₃ = Y₃

                We can solve this system using back substitution.

            X₃ = Y₃

                X₂ = 61/2 + 8/13Y₃

                X₁ = -18 - 1/6X₂ - 4/6X₃

                LU factorization is better than Gaussian elimination when you have more than one system of equations with the same A.

• Factor A in LU = O(N³)
• Gauss Elimination = O(N³)
• Back Substitution = O(N²)
• Forward Substitution = O(N²)
