Steepest Descent or Gradient Method
for finding the minimum of an equation with multiple variables

The gradient Ѧ(X) is a vector function defined as:

Ѧ(X) = ( ¶¦(X)/x1 , ¶¦(X)/x2 ,   . . .   , ¶¦(X)/xN )

The gradient vector points in the direction of the greatest increase in ¦(X). Since we are looking for the minimum, we will use -Ѧ(X), which points in the direction of the greatest decrease.

Basic Gradient Method
- Start at point p0 and move along the line in the direction -Ѧ(X)

p1 = p0 - Ѧ(p0)h
.
.
.
pk = pk-1 - Ѧ(pk-1)h 		where h is a small increment

EXAMPLE
¦(x) = x2 + 1
¦'(x) = 2x
Ѧ(x) = 2x i
  		let h = .1
Using the iteration equation xk = xk-1 - 2xk-1h , start with x0 = -1 and Ѧ(x0) = -2.

x1 = -1 - 2(-1)(.1) = -.8
x2 = -.8 - 2(-.8)(.1) = -.64
x3 = -.64 - 2(-.64)(.1) = -.512

This converges to the solution x = 0.


Numerical Differential Equations

Analytical EXAMPLE
y' = ky   dy/dt = ky
ò dy/y = ò kdt
ln y = kt + k2
eln y = ekt+k2
y = (ek2)(ekt)
y = k3(ekt)


Euler's Method

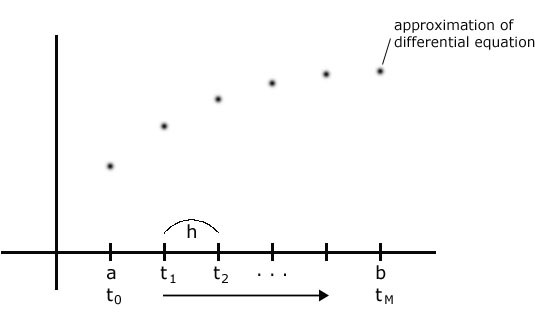

Let [a, b] be the interval for y' = ¦(t, y) with y (a) = y0. We will find a set of points (t0, y0) , (t1, y1) ,   . . .   , (tk, yk) that are used to approximate y (t) = y (tk).


h = (b - a)/M

h is the stepsize

tk = a + kh
for k = 0, 1, 2, ... M

We want to solve y' = ¦(t, y) over {t0, t1, ... tM} with y (t0) = 0. Using Taylor's expansion to approximate y (t) around t0 we have:

y (t) = y (t0) + y '(t0)(t - t0) + y ''(c1)(t - t0)2/2

The error is represented by the y ''(c1)(t - t0)2/2 term where a < c1 < b.
We have:

y1 = y0 + hy (t0)
y1 = y0 + h¦(t0, y0)

And in general:

tk+1 = tk + h
yk+1 = yk + h¦(tk, yk)

EXAMPLE
y' = t2 - yy (0) = 1h = .2

t1 = 0 + .2 = .2
y1 = y0 + h¦(t0, y0) = 1 + .2(02 - 1) = .8

t2 = .2 + .2 = .4
y2 = .8 + .2(.22 - .8) = .648

t3 = .4 + .2 = .6
y3 = .648 + .2(.42 - .648) = .5504

t4 = .6 + .2 = .8
y4 = .5504 + .2(.62 - .5504) = .5123

The exact solution is .5907.


Heun's Method

We want to solve y '(t) = ¦(t, y (t)) over [a, b] with y (t0) = 0. We can integrate y '(t) over [t0, t1]:

t1  t1
ò  y '(t)dt =  ò  ¦(t, y (t))dt = y (t1) - y (t0)
t0  t0

We use numerical integration to approximate the integral in the right side. Use the trapezoidal rule:

y (t1) - y (t0) = (h/2)[¦(t0, y (t0)) + ¦(t1, y (t1))]

Then we have:

y (t1) = y (t0) + (h/2)[¦(t0, y (t0)) + ¦(t1, y (t1))]

Observe we still need to know ¦(t1, y (t1)). That involves y (t1) which is what we want to solve. To eliminate this circular reference, we use Euler's approximation to obtain y (t1).

y (t1) = y (t0) + h¦(t0, y (t0))

So we have:

y (t1) = y (t0) + (h/2)[¦(t0, y (t0)) + ¦(t1, y (t0) + h¦(t0, y (t0))]
y1 = y (t1)
y0 = y (t0)
y1 = y0 + (h/2)[¦(t0, y0) + ¦(t1, y0 + h¦(t0, y0))]

With y0 + h¦(t0, y0) as p0 we have in general:

pk+1 = yk + h¦(tk, yk)
yk+1 = yk + (h/2)[¦(tk, yk) + ¦(tk+1, pk+1)]

EXAMPLE
¦(t, y) = y' = t2 - yy (0) = 1h = .2
__________________________________________________

For k = 0 and t0 = 0 we have y0 = 1
__________________________________________________

For k = 1 and t1 = 0 + .2 = .2
p1 = y1 + h¦(t0, y0) = y0 + h(t02 - y0) = 1 + .2(02 - 1) = .8
y1 = (h/2)[(t02 - y0) + (t12 - p1)]
y1 = 1 + (.2/2)[(02 - 1) + (.22 - .8)] = .8240
__________________________________________________

For k = 2 and t2 = .4
p2 = .8240 + .2(.22 - .8240) = .6672
y2 = .8240 + (.2/2)[(.22 - .8240) + (.42 - .6672)] = .6949
__________________________________________________

For k = 3 and t3 = .6
p3 = .6949 + .2(.42 - .6949) = .5879
y3 = .6949 + (.2/2)[(.42 - .6949) + (.62 - .5879)] = .6186
__________________________________________________

For k = 4 and t4 = .8
p4 = .6186 + .2(.62 - .6186) = .5669
y4 = .6186 + (.2/2)[(.62 - .6186) + (.82 - .5669)] = .6001

The exact solution is .5907.


Taylor Series Method

Using the Taylor Approximation to approximate the solution where y (t1) = y (t0 + h) we have:

y (t1) = y (t0) + hy '(t0) + h2y ''(t0)/2 +   . . .   + hNy N(t0)/N!

We want to solve y' = ¦(t, y), where y (t0) = a. From the Taylor expansion we can find the succesive points:

yk+1 = yk + hy'k + h2y''k/2 + h3y'''k/3! +   . . .   + hNyNk/N!

We still need to compute y''k, y'''k,  . . .   etc. using y' = ¦(t, y). The error in the approximation will be O(hN+1). The higher the order of the Taylor series, the smaller the error.

EXAMPLE
With N = 3, solve y' = t2 - yy (0) = 1h = .2

yk+1 = yk + hy'k + h2y''k/2 + h3y'''k/6

y' = t2 - y
y'' = 2t - y'
y''' = 2 - y''
__________________________________________________

For k = 0 and t = 0
y0 = 1
y'0 = 02 - 1 = -1
y''0 = 2(0) - (-1) = 1
y'''0 = 2 - 1 = 1
__________________________________________________

For k = 1 and t = .2
y1 = 1 + (.2)(-1) + (.2)2(1)/2 + (.2)3(1)/6 = .821333
y'1 = (.2)2 - .821333 = -.781333
y''1 = 2(.2) - (-.781333) = 1.181333
y'''1 = 2 - 1.181333 = .818667
__________________________________________________

For k = 2 and t = .4
y2 = .821333 + (.2)(-.781333) + (.2)2(1.181333)/2 + (.2)3(.818667)/6 = .689785
y'2 = (.4)2 - .689785 = -.524785
y''2 = 2(.4) - (-.524785) = 1.329785
y'''2 = 2 - 1.329785 = .670215
__________________________________________________

For k = 3 and t = .6
y3 = .689785 + (.2)(-.529785) + (.2)2(1.329785)/2 + (.2)3(.670215)/6 = .611317
y'3 = (.6)2 - .611317 = -.251317
y''3 = 2(.6) - (-.251317) = 1.451317
y'''3 = 2 - 1.451317 = .548683
__________________________________________________

For k = 4
y4 = .611317 + (.2)(-.251317) + (.2)2(1.451317)/2 + (.2)3(.548683)/6 = .590812

The exact solution is .5907.


To compare with the exact solution of .5907, the Taylor series method gave .590812, the Heun method gave .6001, and the Euler method gave .5123. To reduce approximation error, increase the order N of the dimensions or reduce the value of h. It is more effective to increase N. Recall that the error is O(hN+1).



Runge-Kutta Method of Order 4

The Taylor method gives a good approximation, but it requires the derivatives of the function. The Runge-Kutta method of order 4 simulates the accuracy of the Taylor series method using an order of N = 4 but it does not require the computation of derivatives.

yk+1 = yk + (h/6)(¦1 + 2¦2 + 2¦3 + ¦4)

¦1 = ¦(tk, yk)
¦2 = ¦(tk + h/2, yk + (h/2)¦1)
¦3 = ¦(tk + h/2, yk + (h/2)¦2)
¦4 = ¦(tk + h, yk + h¦3)

EXAMPLE
¦(t, y) = y' = t2 - yy (0) = 1h = .2


For k = 0 and t0 = 0
y0 = 1
¦1 = 02 - 1 = -1
¦2 = ¦(0 + .2/2, 1 + .2/2(-1)) = ¦(.1, .9) = .12 - .9 = -.89
¦2 = ¦(0 + .2/2, 1 + .2/2(-.89)) = ¦(.1, .911) = .12 - .911 = -.901
¦4 = ¦(0 + .2, 1 + .2(-.901)) = f(.2, .8198) = .22 - .8198 = -.7798
__________________________________________________

For k = 1 and t1 = .2
y1 = 1 + (.2/6)(-1 + 2(-.89) + 2(-.901) + (-.7798)) = .821273
¦1 = .22 - .821273 = -.781273
¦2 = ¦(.2 + .2/2, .821273 + .2/2(-.981273)) = ¦(.3, .743196) = .32 - .743196
¦2 = ¦(.2 + .2/2, .821273 + .2/2(-.653146)) = ¦(.3, .755958) = .32 - .755958 = -.665958
¦4 = ¦(.2 + .2, .821273 + .2(-.665958)) = f(.4, .688081) = .42 - .688081 = -.528081
__________________________________________________

For k = 2 and t2 = .4
y2 = .821273 + (.2/6)(-.781273 + 2(-.653146) + 2(-.665958) - .528081) = .689688

The exact solution of y (.4) is .6897.
Taylor (.4) is also .6897.


Systems of Differential Equations


Assume we have dx/dt = ¦(t, x, y) and dy/dt = g (t, x, y) with x (t0) = x0 and y (t0) = y0. The solution to this system are functions x (t) and y (t) that when derivated and substituted in the system of equations give equality.

An example of a system of Differential Equations:

x' = x + 2yx (0) = 6
y' = 3x + 2yy (0) = 4

Analytical solution:
x (t) = 4e4t + 2e-t
y (t) = 6e4t - 2e-t


Euler's Method for Systems of Differential Equations

We can extend Euler's method of a single differential equation to a system of equations.

dx/dt = ¦(t, x, y)dx = ¦(t, x, y)dt
dy/dt = g (t, x, y)dy = g (t, x, y)dt

dxk = xk+1 - xk
dyk = yk+1 - yk
dtk = tk+1 - tk

xk+1 - xk = ¦(tk, xk, yk)(tk+1 - tk)
yk+1 - yk = g (tk, xk, yk)(tk+1 - tk)

With h = tk+1 - tk we have that:
xk+1 = xk + ¦(tk, xk, yk)h x (t0) = x0
yk+1 = yk + g (tk, xk, yk)h y (t0) = y0

The Euler method does not give good accuracy because it approximates the Taylor expansion only to the first derivative.


Runge-Kutta for Systems of Differential Equations

The Runge-Kutta method can be extended to systems of linear equations. The formulas are the following for Runge-Kutta of Order 4:

xk+1 = xk + (h/6)(¦1 + 2¦2 + 2¦3 + ¦4)
yk+1 = yk + (h/6)(g1 + 2g2 + 2g3 + g4)

¦1 = ¦(tk, xk, yk)
¦2 = ¦(tk + h/2, xk + (h/2)¦1, yk + (h/2)g1)
¦3 = ¦(tk + h/2, xk + (h/2)¦2, yk + (h/2)g2)
¦4 = ¦(tk + h, xk + h¦3, yk + hg3)

g1 = g (tk, xk, yk)
g2 = g (tk + h/2, xk + (h/2)¦1, yk + (h/2)g1)
g3 = g (tk + h/2, xk + (h/2)¦2, yk + (h/2)g2)
g4 = g (tk + h, xk + h¦3, yk + hg3)


Higher Order Differential Equations

Higher order differential equations involve higher derivates like x ''(t) and y ''(t). For example: mx ''(t) + cx '(t) + kx (t) = g (t). These higher order differential equations can be transformed to a system of differential equations of first order.

Use the substitution: y (t) = x '(t)
For the above system we obtain x ''(t):

x ''(t) = (g (t) - cx '(t) - kx (t))/m

Substituting y (t) = x '(t) we get the first differentional equation of first order in the system:

y '(t) = (g (t) - cy (t) - kx (t))/m

The second equation is simply the substitution y (t) = x '(t).

EXAMPLE
4x'' + 3x' + 5x = 2x (0) = 1x '(0) = 3

x'' = (2 - 3x' - 5x)/4Let y = x'
y' = (2 - 3y - 5x)/4x' = y

The system of differential equations uses the last two equations from above y' = (2 - 3y - 5x)/4 and x' = y with x (0) = 1 and y (0) = 3.



Final Exam Review

CURVE FITTING
- Least Squares Line
- Least Squares for non-linear equations
- Transformation for data linearization
- Polynomial fitting
- Splines
- 5 properties of splines
- Proof
- How to use formulas to get spline coefficients
- End point constraints

NUMERICAL DIFFERENTIATION
- Limit of Difference Quotient
- Central Difference Formula of Order O(h2)
- Central Difference Formula of Order O(h4)

NUMERICAL INTEGRATION
- Trapezoidal Rule
- Simpson's Rule

NUMERICAL OPTIMIZATION
- Local/global minimum/maximum
- Properties of minimum/maximum
- Golden Ratio Method
- Minimization using derivatives and solving with methods like Newton-Raphson
- Steepest Descent or Gradient Method

SOLUTION OF DIFFERENTIAL EQUATIONS
- Euler's Method
- Heun's Method
- Taylor Series Method
- Runge-Kutta Method of Order 4
- Systems of differential equations
- Euler's Method
- Runge-Kutta Method of Order 4
- Higher order differential equations

The final exam is Friday August 8 at 10:20-12:20 AM in WTHR 104.
