/home/elb/work/cs590n/mace/mace/lib/MaceKey.h File Reference

---

Detailed Description

Included in this file are the mace::MaceKey classes.

The basic MaceKey interface is specified by the class MaceKey_interface. MaceKey and all its sub-helpers provide that interface. Each sub-helper is also mapped to a address family, as defined in MaceBasics.h MaceKey's also throw 3 exceptions:

• InvalidMaceKeyException: thrown when a function is called on a MaceKey which does not support the operation
• IndexOutOfBoundsException: thrown when trying to index a digit which is out of bounds of the MaceKey
• DigitBaseException: thrown when a digit base is offered which does not divide 32.

To construct most MaceKey's, you can pass in a type (ipv4, sha32, sha160, or string_key), and a string. The string will be interpreted as appropriate for that MaceKey sub-type.

e.g.

 using mace::MaceKey;
 MaceKey a = MaceKey(ipv4, "10.0.0.1:12345");
 MaceKey b = MaceKey(ipv4, "www.google.com");
 MaceKey c = MaceKey(sha160, "Some string to hash to produce the address");
 MaceKey d = Macekey(string_key, "a string which serves as an address");

Additionally there is a MaceKey constructor that parses a string with a family prefix, and constructs an appropriate MaceKey:

 mace::MaceKey e = mace::MaceKey("IPV4/www.ibm.com:12345");

There are also constructors which do more specific constructions based on the MaceKey subtype.

Implementation Note: The helper classes are all privately enclosed in MaceKey, to prevent outside code from ever creating or referencing them. Before adding new MaceKey helper classes, take a good look at this code. You'll have to add a new address family, both here and in MaceBasics.h, and there are a number of places code should be added. In particular, you'll want to note the bitarr_MaceKey, MaceKey_exception, and intarr_MaceKey classes as they may be helpful.

Definition in file MaceKey.h.

#include <stdint.h>
#include <inttypes.h>
#include <sys/types.h>
#include "m_net.h"
#include <iomanip>
#include <cassert>
#include <boost/shared_ptr.hpp>
#include <string>
#include "Serializable.h"
#include "Exception.h"
#include "HashUtil.h"
#include "Log.h"
#include "MaceBasics.h"
#include "Collections.h"

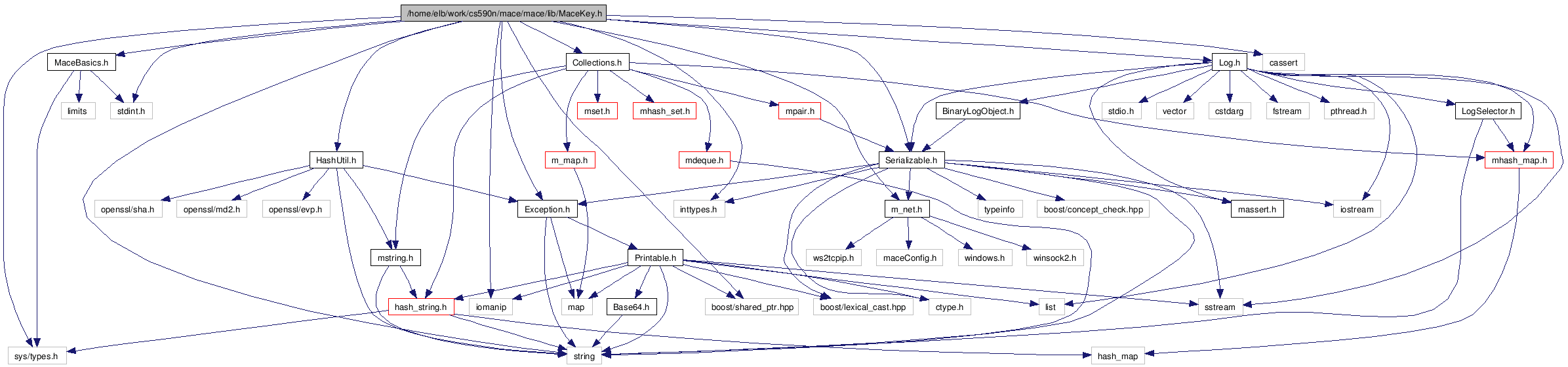

Include dependency graph for MaceKey.h:

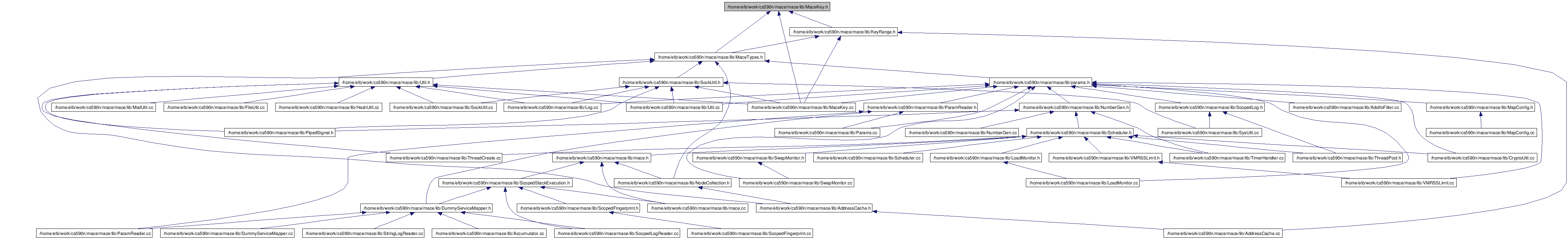

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	mace
namespace	__gnu_cxx
Classes
class	mace::SockAddr
	Helper class to represent an IP and port pair. More...
class	mace::MaceAddr
	Helper class to represent Mace addresses. More...
class	mace::MaceKey_interface
	The generic interface for MaceKey and its helper classes. More...
class	mace::MaceKey
	The base class of Mace addresses. More...
class	mace::MaceKeyDiff
	A class to represent the difference between two bit array MaceKey objects (big integers). (like TimeDiff in other languages). More...
Functions
MaceKey	mace::operator+ (const MaceKey &, const MaceKeyDiff &) throw (InvalidMaceKeyException)
	adds a MaceKeyDiff to a MaceKey
MaceKey	mace::operator- (const MaceKey &, const MaceKeyDiff &) throw (InvalidMaceKeyException)
	subtracts a MaceKeyDiff from a MaceKey
MaceKey	mace::operator+ (const MaceKey &, uint32_t) throw (InvalidMaceKeyException)
	adds a 32-bit integer as an implicit MaceKeyDiff
MaceKey	mace::operator- (const MaceKey &, uint32_t) throw (InvalidMaceKeyException)
	subtracts a 32-bit integer as an implicit MaceKeyDiff
MaceKeyDiff	mace::operator- (const MaceKey &to, const MaceKey &from) throw (InvalidMaceKeyException)
	returns the length between two points on the circle (i.e. between the two ids in id-space).
Variables
const mace::MaceKey::ipv4_type	mace::ipv4 = mace::MaceKey::ipv4_type()
	defines an object for passing into the Macekey constructor
const mace::MaceKey::sha160_type	mace::sha160 = mace::MaceKey::sha160_type()
	defines an object for passing into the Macekey constructor
const mace::MaceKey::sha32_type	mace::sha32 = mace::MaceKey::sha32_type()
	defines an object for passing into the Macekey constructor
const mace::MaceKey::string_type	mace::string_key = mace::MaceKey::string_type()
	defines an object for passing into the Macekey constructor
