ART in action:

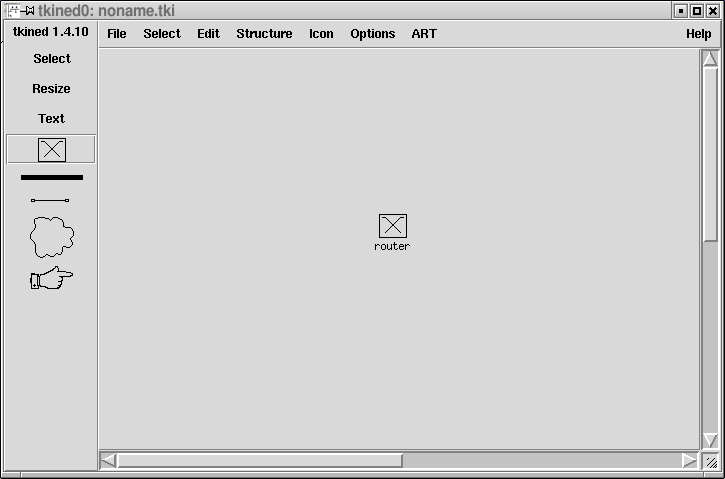

1. User places a router

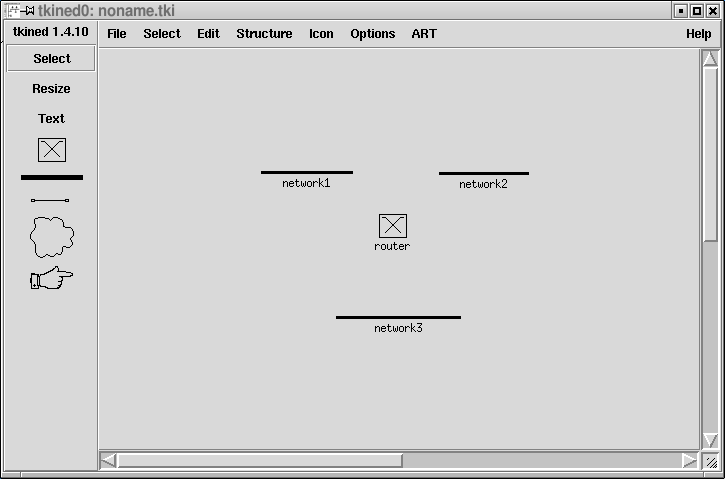

2. User creates three networks




3. User connects router to networks

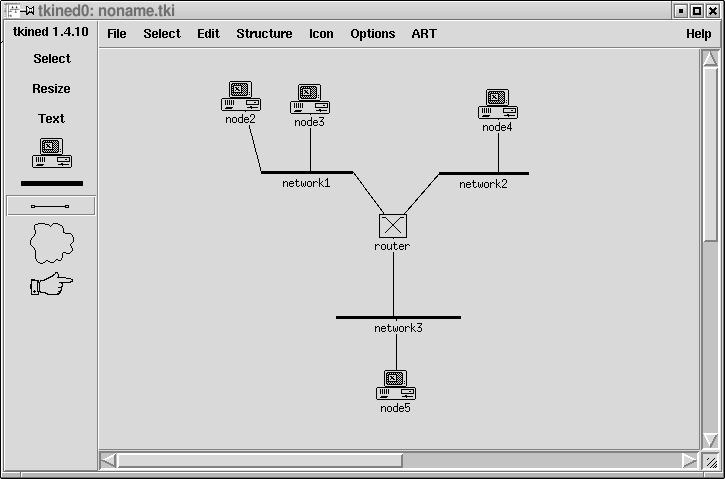

4. User adds four hosts and connects them to networks

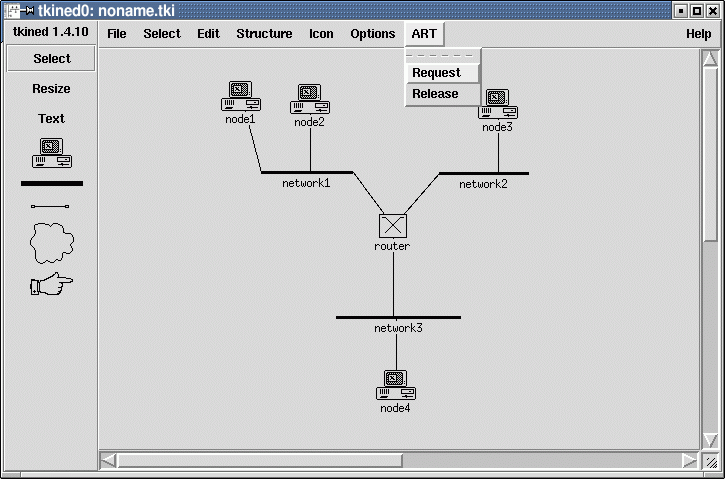

5. Now user is ready to request selected topology

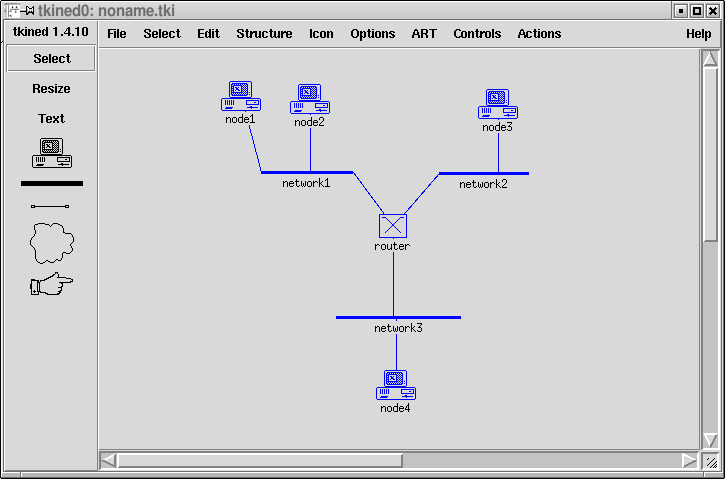

6. The topology was successfully provided (now all its elements turned to blue)

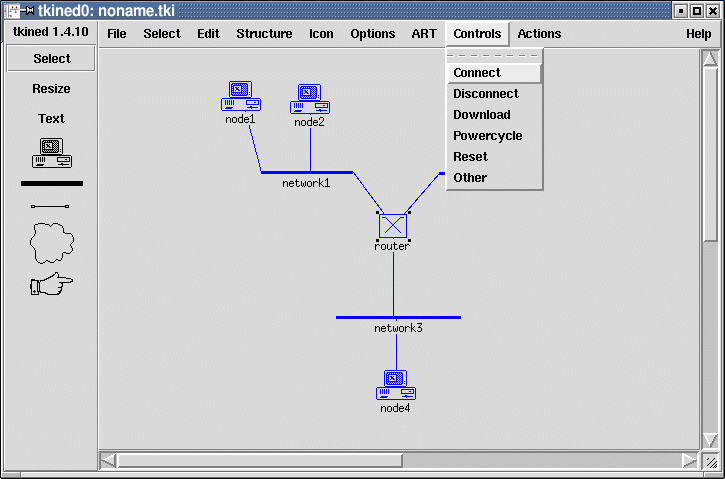

7. User selects router and wishes to connect to it




8. Connection to router was successfully established (now it turned to red)

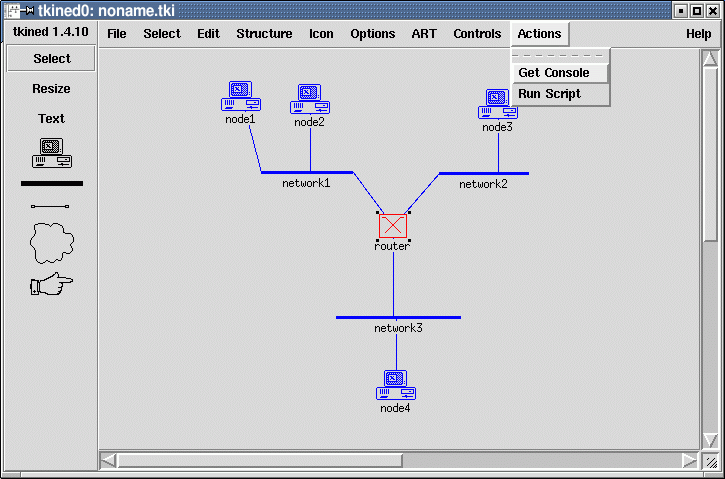

9. Now user wishes to get a router console...

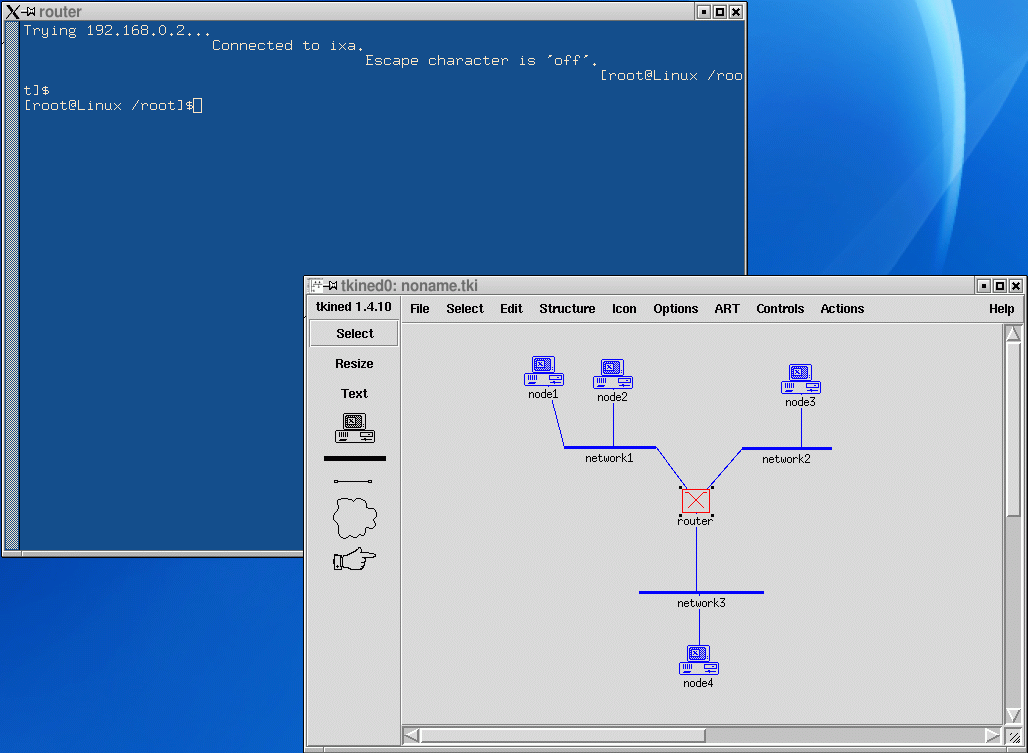

10. ..and gets it!
