CS250 Lab 5

Implementing a Digital Alarm Clock

Grading Form

Goal

In this lab you will use the Arduino Board and the 7-segment display to implement a digital alarm clock with clock and alarm set, melody selection etc.

Step 1. Using the 7-segment display with the Arduino

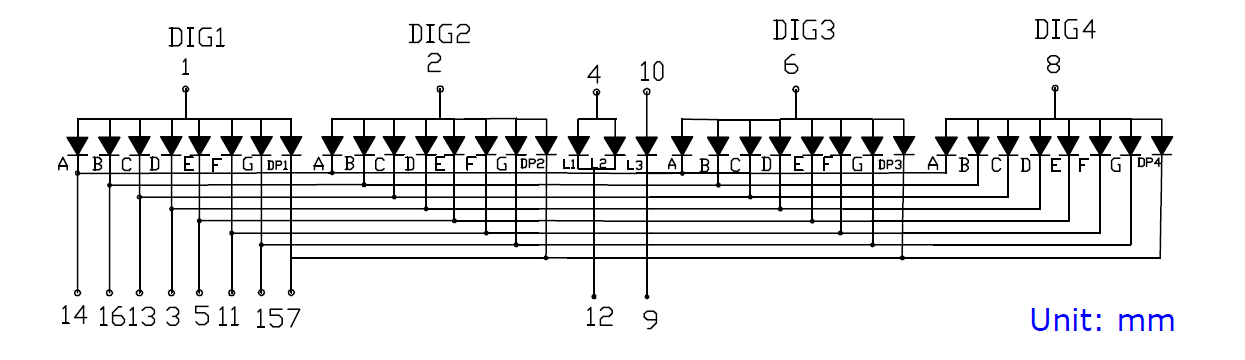

Read the "Arduino Inventor's Kit" documentation circuit 5 (page 16). You will use a similar circuit to turn on the segments of the 7-segment display but instead of using LEDs you will use the segments of the display. Remember to use the limiting resistors from lab3. Also remember that the 7-segment display is "common anode", so it will need a 0 to turn on one segment instead of a 1.  You will use the 74HC595 Shift Register to provide more outputs to the Arduino. Intially you can only wire DIG1 by connecting pin 1 to +5V.

Write a function display7seg(int num); that will display the corresponding number 0 to 9 in the 7-segment display and test it.


f

Step 2. Displaying Digits in Multiple Positions

Now connect the digital outputs 5, 6, 7, and 8 to the terminals DIG1, DIG2, DIG3, DIG4 of the 7-segment display. These outputs will be able to select a digit at a time. For example, if you set DIG3 to 1 and DIG1, DIG2, DIG4 to 0 then only digit 3 will display the umber when calling display7seg(int num);.

To display all the digits you will have to select and display one digit at a tiime. Look at the example code:

void setup() {
  // Setup pins 5, 6, 7, 8 as outputs.
....
}

void loop() {
  while(1) {
    // Display digit 1
    digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,LOW);digitalWrite(8,LOW); // Turnoff display
    display7seg(1); // Display 1 at ditgit 1
    digitalWrite(5,HIGH); digitalWrite(6,LOW); digitalWrite(7,LOW);digitalWrite(8,LOW); // Turnon digit 1

    // Display digit 2
    digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,LOW);digitalWrite(8,LOW); // Turnoff display
    display7seg(2); // Display 2 at ditgit 2
    digitalWrite(5,LOW); digitalWrite(6,HIGH); digitalWrite(7,LOW);digitalWrite(8,LOW); // Turnon digit 1

   // Display digit 3
    digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,LOW);digitalWrite(8,LOW); // Turnoff display
    display7seg(3); // Display 3 at ditgit 3
    digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,HIGH);digitalWrite(8,LOW); // Turnon digit 1

    // Display digit 4
    digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,LOW);digitalWrite(8,LOW); // Turnoff display
    display7seg(4); // Display 4 at ditgit 4
    digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,LOW);digitalWrite(8,HIGH); // Turnon digit 1
  }
}


Step 3. Implementing the clock.

Arduino has a Time library that you can use. You can try running the sketch that is given in the example. Display the hours and minutes in this library in your 7-segment display by reading in the main loop the minutes and seconds and updating the digits.

Step 4. Set Hours and Minutes in your clock.

Add 4 buttons to your clock and implement an interface to set the hours and minutes in your clock as well as set the alarm clock. Use the code in the push button example circuit you did in last lab.

Step 5. Add Alarm.

See how to generate music with the Arduino in circuit 6 of the "Arduino Inventor's kit". You will connect the speaker in series with the 100uf capacitor and ground. Make sure that the negative side of the capacitor is connected to the ground.

To submit

For next PSO bring steps 2, 3 and 4. For the PSO in two weeks bring your finished alarm clock.

Your clock should:
